Foundation settling is the slow downward movement of a house as the soil under its footings compresses under the weight. Every house settles a little, and a house that settles evenly rarely shows damage. Problems start when one part settles more than another, or when something in the ground keeps moving the foundation years after construction. Subsidence and heave are related ground movements with different causes, and they need different fixes.
If your doors stick, your floors slope or new cracks have appeared, you need to know whether this is normal settling or a real problem. You are not alone: NAHB notes that all foundations on soil move, so some settling is expected in every house. In this guide I will explain what settling is, how it differs from subsidence and heave, what moves the soil, how much settling is normal by published standards, how to check your own house, and how settling is fixed and what that costs in 2026.
Short answer
Some settling is normal, especially in the first few years after a house is built. It becomes a problem when it is uneven, when it keeps going, or when it causes damage: diagonal cracks that grow, floors that slope more each year, doors and windows that start to jam, or gaps between walls, floors and trim. Uneven movement in an older house almost always has a new cause, usually water, so look for a leak, poor drainage or drying clay before you pay for piers.
Normal settling
Old and stable
Fine cracks that appeared in the first years and have not changed, with doors that still close.
Monitor it
New or seasonal
Cracks that open in dry summers and close in wet winters, or a slight new slope in one room.
Call an engineer
Still moving
Cracks growing month by month, floors sloping more each year, or doors that suddenly jam.
What Is Foundation Settling?
When a house is built, its weight presses on the soil under the footings. Soil is a mix of particles, water and air, so it compresses under that load. The US Army Corps of Engineers' settlement manual describes three parts to this movement: immediate settlement as the soil changes shape, consolidation as water is squeezed out of the pores, and slow secondary compression afterward.
Sand and gravel settle mostly as the house is built, because water drains out of them quickly. Clay holds water tightly, so it consolidates slowly, often over months to a few years. Either way, the movement slows down and stops once the ground has adjusted to the load. The National Association of Home Builders (NAHB) states plainly that all foundations on soil move, both under load and with changes in soil moisture.

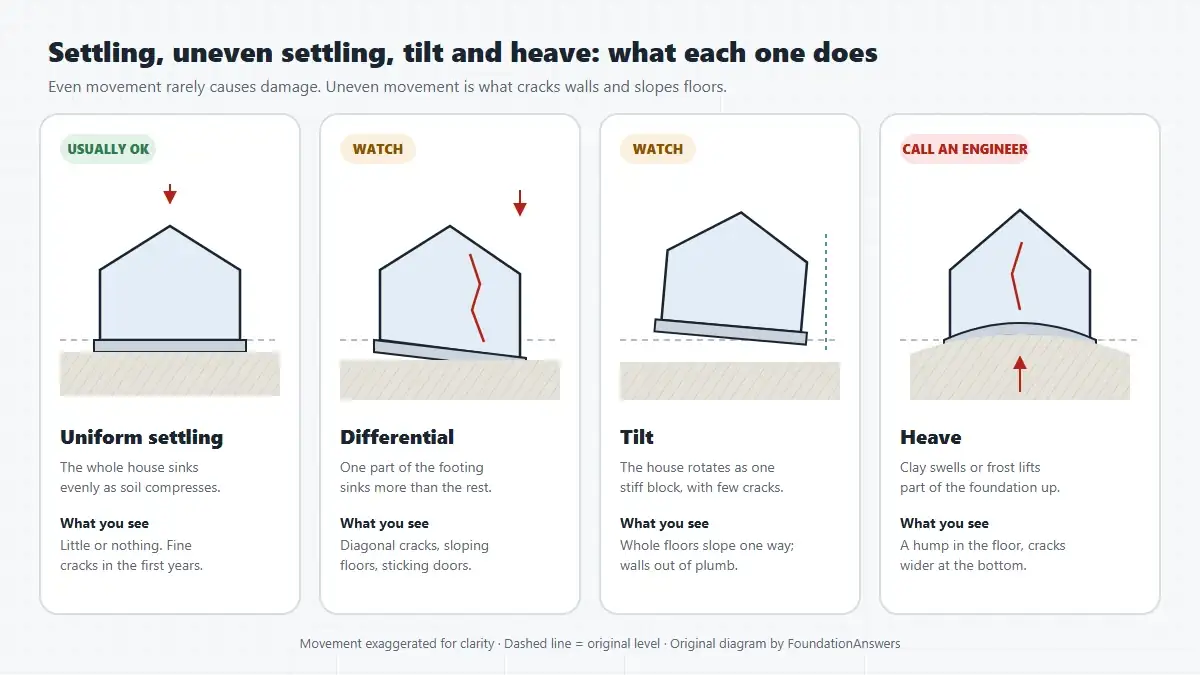

Settling vs Subsidence vs Heave: What Is the Difference?
People use these words loosely, but they describe different movements with different causes. Below I am explaining each one in a table.
| Movement | What happens | Usual cause | Typical timing |
|---|---|---|---|
| Uniform settling | The whole house moves down evenly | Soil compressing under the house's weight | First months to few years |
| Differential settling | One part moves down more than another | Uneven soil, soft fill, poor drainage at one corner | Early, or years later after a change |
| Subsidence | The ground itself sinks beneath the house | Shrinking clay, washed-out soil, mining, sinkholes, groundwater pumping | Any time, often after drought or a leak |
| Heave | The ground pushes part of the house up | Clay swelling with water, frost, or soil recovering after a tree is removed | Wet seasons, winters, after tree removal |
As the table shows, only uniform settling is harmless on its own. The other three move one part of the house more than another, and that uneven movement is what causes damage.
Subsidence can happen on a large scale. The US Geological Survey reports that land subsidence has directly affected more than 17,000 square miles in 45 states, and that more than 80% of it comes from the way people use underground water. Most house damage, though, comes from much more local causes, explained next.
What Causes a Foundation to Settle or Move?
Below I am sharing the causes in the order you are most likely to meet them. Notice how many involve water.
- Compression under load: The normal settling every new house goes through as the soil adjusts to its weight.
- Poorly compacted fill: Soil placed during construction, or a buried pocket of soft material, keeps compressing after the house is finished.
- Expansive clay: Clay swells when wet and shrinks when dry. The Colorado Geological Survey reports that about 250,000 new US homes are built on expansive soils each year, and about 10% of those suffer significant damage.
- Drought and trees: Long dry spells and tree roots pull water out of clay, so it shrinks under the footings. Removing a large tree can do the opposite and let the clay swell back.
- Leaks and poor drainage: A leaking pipe, a downspout that empties at the wall, or ground that slopes toward the house softens the soil or washes it away.
- Frost heave: Footings that sit above the local frost depth lift when wet soil under them freezes and expands.
- Ground subsidence: Sinkholes in limestone areas, old mine workings and falling groundwater levels lower the ground over a wider area.
How Much Foundation Settling Is Normal?
There is no single legal limit for settlement in an existing house. Engineers judge it by how much the foundation has moved relative to its length, and by the damage that movement has caused. Two published reference points help you put numbers on it.
- Designed movement: NAHB notes that conventional spread footings are designed to tolerate up to about 1 inch of movement, and some slab-on-grade foundations are designed for up to 4.5 inches.
- Deflection and tilt limits: A Texas builders' warranty definition quoted by NAHB treats a slab as structurally defective when its deflection exceeds its length divided by 360 (L/360) with more than one sign of distress, or when it tilts more than 1% across the house.
You can turn the L/360 rule into a number for your own house with this formula:
Deflection limit (inches) = span length in feet × 12 ÷ 360
Example: Across a 36-foot-wide house, the limit is 36 × 12 ÷ 360 = 1.2 inches. If a floor survey shows the middle of the house sitting more than about 1.2 inches lower than the edges, and you also see cracking or sticking doors, the movement is past what that standard treats as acceptable. The 1% tilt limit across the same 36 feet works out to about 4.3 inches. These are warranty benchmarks, not building code limits, but they give you and your engineer a shared yardstick.
So, Is It Normal Settling or a Foundation Problem?
The difference between normal settling and a problem shows in the pattern and the timing of the damage. Below I am explaining the signs side by side in a table.
| What you check | Normal settling | Foundation problem |
|---|---|---|
| Wall cracks | Fine, mostly vertical, appeared early and stopped | Diagonal from door and window corners, wider at one end, still growing |
| Foundation cracks | Hairline shrinkage cracks, no offset | Horizontal, stair-step or offset cracks, or wider than about 1/4 inch |
| Floors | Slight, old, even slope | A slope that increases, a dip in the middle or a hump |
| Doors and windows | Close normally, perhaps seasonal sticking | Start to jam, swing open or show tapered gaps |
| Outside | Brick and siding straight | Bricks separating, chimney leaning, gaps at window frames |
| Timing | First few years, then stable | New movement in an older house, or movement that never stops |
As the table shows, timing is the clearest difference. Normal settling happens early and stops, while a foundation problem keeps moving or starts years later.
For a detailed guide to crack width, direction and offset, see our guide to telling whether a foundation crack is serious.
How to Check Your House for Settlement
You can collect good evidence yourself before you call anyone. Below I am sharing the steps.
- Survey the floors: Use a laser level or a long water level to measure floor heights at the corners and the middle of each room. Write the readings on a sketch of the floor plan.
- Find the pattern: A low corner points to that part of the footing. A low middle points to interior supports. A high middle with low edges can mean heave.
- Log the cracks: Measure each crack, mark its ends with a pencil and the date, and photograph it with a ruler. Repeat every month.
- Check doors and windows: Note which ones stick and whether the gap at the top is tapered.
- Walk the outside: Look for ground sloping toward the house, downspouts that drain at the wall, large trees close to the foundation and gaps between the walls and steps or patios.
- Look for water: Check for leaks under sinks, a running water meter with all taps closed, or wet ground that never dries.
- Track through the seasons: Clay soils open cracks in dry summers and close them in wet winters, so record at least one full cycle when you can.
How Is a Settling Foundation Fixed?
The right fix depends on whether the movement has stopped and what caused it. Below I am explaining the common fixes and their typical 2026 costs from This Old House's cost data, in a table.
| Fix | When it fits | Typical cost |
|---|---|---|
| Repair cracks and adjust doors | Movement has stopped | Low; cosmetic work |
| Drainage and leak repair | Water is softening, shrinking or washing out the soil | Varies with scope |
| Mudjacking or foam lifting | Sunken concrete slabs, steps and walks | $550–$1,300 |
| Piers (underpinning) | Part of the footing keeps sinking into weak soil | $1,000–$3,000 per pier |
| Re-shimming a raised floor | Pier and beam houses with sinking interior supports | See our pier and beam guide |
| Structural engineer's report | Any time movement is ongoing or the cause is unclear | $500–$1,000 |
As the table shows, the cheapest fixes deal with movement that has stopped and with water. Piers make sense only when part of the footing is still sinking.
This Old House puts the average foundation repair at about $5,179, with most homeowners paying $2,224 to $8,134. If your house stands on piers and beams rather than a slab or basement, our pier and beam foundation guide covers re-leveling from the crawl space. For other methods, see the glossary entry on differential settlement and our foundation repair methods compared.
Common Mistakes to Avoid With Foundation Settling
- Assuming all cracks mean failure: Fine early cracks are normal settling. Judge by pattern and growth.
- Assuming an old house cannot move: New movement in an older house is a sign of a new cause, usually water.
- Buying piers before fixing water: Piers support a footing, but a leak or a blocked drain keeps damaging the ground around it.
- Letting clay swing between wet and dry: On clay, big swings in moisture cause movement. Keep moisture steady and drain roof water away from the walls.
- Removing a large tree without advice: Clay that the tree kept dry can swell back for years and lift the house.
- Lifting a house all the way back to level: Old houses are often lifted only to a stable, safe position, because forcing them flat cracks finishes.
Conclusion
Settling is normal; ongoing uneven movement is not. If your cracks are old, fine and stable, you have a normal house. If cracks keep growing, floors slope more each year or doors start to jam, something under the house is still moving, and water is the most common reason. Fix leaks and drainage first, measure the movement over time, and bring in a structural engineer before you commit to piers. For more help, browse our plain-English answers on settling, soil and foundations.
Frequently Asked Questions
-
Can a house still settle after 30 years?
Yes, but not from the original settling. The soil under a 30-year-old house finished compressing long ago. New movement at that age almost always has a new cause: a leaking pipe, a blocked downspout, a drought that shrank clay soil, a tree growing near the wall, or soil washing out. Find and fix that cause, because the movement continues until you do.
-
How long does it take a foundation to settle?
It depends on the soil. On sand and gravel, most settlement happens as the house is built and loaded. On clay, the soil squeezes water out slowly, so settlement continues for months to a few years. After that, a well-built house on stable soil moves very little. Movement that keeps going after the first few years points to another cause, not normal settling.
-
What does a house settling sound like?
Most creaks and pops are not settling at all. Wood framing, ductwork and pipes expand and contract with temperature and humidity, which makes ticking and cracking sounds, often at night as the house cools. Foundation settlement is too slow to hear. If you hear a sharp crack and then find a new wall crack or a door that suddenly sticks, check for movement.
-
Can house settling be fixed?
Yes. If settling has stopped, you only repair the cracks and adjust doors. If one part of the house keeps sinking, the usual fix is to correct drainage and support that part on piers driven to firmer soil. Sunken concrete slabs are lifted by mudjacking or foam injection. Houses on piers and beams are re-leveled with shims. An engineer's report tells you which one you need.
-
Is it safe to live in a house with foundation settling?
In nearly all cases, yes. Settling moves slowly, so it gives you time to monitor and plan a repair. The exceptions need immediate help: a wall that is bowing or leaning, doors or windows that suddenly jam, gas or water lines that break, or new wide cracks that appear in days. Call a structural engineer and, for gas, your utility straight away.
-
Does homeowners insurance cover settling or subsidence?
In the US, standard homeowners policies usually exclude settling, cracking and earth movement, and cover only sudden accidental damage such as a burst pipe. In the UK, subsidence is normally an insured peril on buildings policies, usually with a larger excess than other claims. Check your own policy wording before you start any repair.
Sources and Standards
- National Association of Home Builders, Construction Liability and Risk Management Committee, W. Keaveny, PE, Misconceptions about the common crack, January 2018.
- US Army Corps of Engineers, EM 1110-1-1904, Settlement analysis (immediate settlement, consolidation and secondary compression).
- US Geological Survey, Land subsidence in the United States, Fact Sheet 165-00.
- Colorado Geological Survey, Expansive soil and rock.
- This Old House, Foundation repair cost, updated October 2026.
- Association of British Insurers figures, reported by Insurance Times, Summer 2022 heatwave saw surge in subsidence payouts, March 2023.
- Nationwide, Does homeowners insurance cover foundation repair?
- Standards Australia, AS 2870, Residential slabs and footings (site classification).
